Description

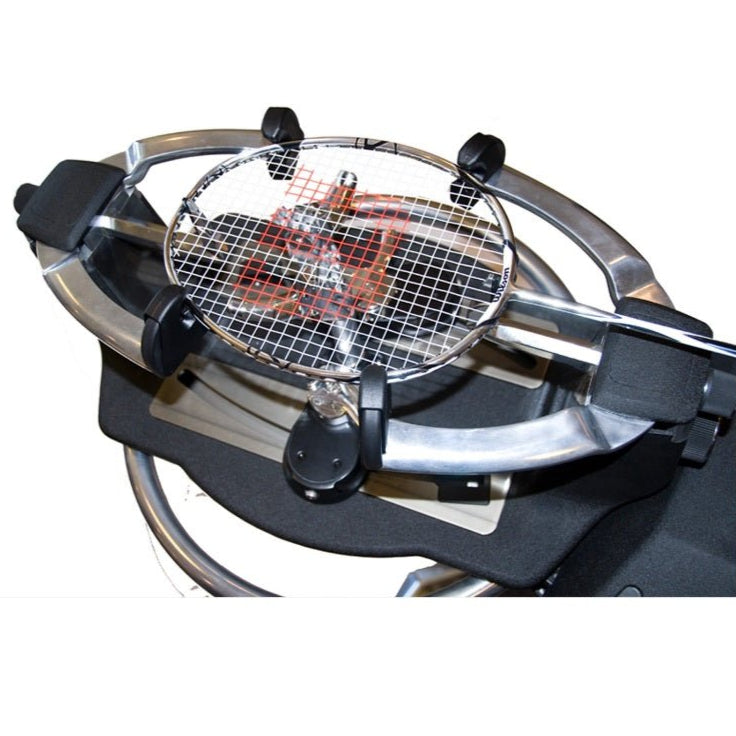

Designed with a laser focus on best-in-class ergonomics to accommodate the demanding needs of professional stringers, the Wilson Baiardo Stringing Machine pairs a clean, sleek look with a number of features that revolutionize comfort and convenience during the stringing process. Biomechanically Efficient Stringing Technology features three separate motors to create optimal angles for different phases of the stringing process, reducing the need to bend and twist. These tilt and height positions are determined by formulas based on the user's height, but can be customized and recalled for up to six different users through a multilingual touch screen display. Machine also features a six-point mounting system with 360-degree rotation, and a self-guiding tension head that requires just one motion to lock the string and pull tension with the flick of a finger.
PRODUCT NOTE: Wilson no longer ships this machine with chrome clamps. They have been replaced with the black clamps
Wilson’s B.E.S.T. System- Biomechanically Efficient Stringing Technology adjusts the machine 3 times during a string job, first when mounting the frame, then stringing the mains, then stringing the crosses. The machine adjusts the height and tilt to make your stringing more comfortable and efficient.
Modular Design- The parts for this machine were created for easy replacement, so should a part need service or a replacement, it will be very easy to remove or install.
Most Customizable- Customizable settings include mounting height, mounting tilt, main string tilt, cross string tilt, cross string height, main string height, pull speed, pre-stretch, knot over-pull, pounds or kilograms, cross string tension difference, tension reached sound on/off, and multiple languages. When you make a change, Baiardo will remember it for the next time!
Pullerhead- The design of the puller head allows for one motion to lock the string and pull tension with the flick of a finger. You won’t need to look where the string is going, the machine does all the work for you.
Adjustable Mounting Posts - The Baiardo L features mounting post that can spring forward to better accommodate badminton rackets. badminton adapter kit also included.
Easy Set-Up- This machine only requires 6 screws to attach the base and column, and only 6 more to attach the base to top. There are two cable connectors, and a power cord that plugs into a regular outlet.
Touch Screen- Features the industries first LED touch screen user interface.
Wilson Baiardo String Machine Details:
- Assembled Weight- 124 pounds
- Width- 41’
- Height at maximum extension- 52’
- Height at minimum extension- 41’
- Angle of stand- 7 degrees
- Power Supply- External Switching, 100-240 Volts
- Machine Top box size- 47’L x 21.5’W x 19’H
- Machine Top Box Weight- 90 pounds
- Machine Base Box Size- 31’L x 20’W x 11.5’H
- Machine Base Box Weight- 50 pounds
- Main material- Aluminum (25% recycled)
- Included Stringing Tools- Diamond dusted starter clamp, needle nose pliers, cutter, awl, load spreader for badminton stringing
- Included assembly tools- All necessary Hex keys
- Machine is ready to use for tennis, squash , or badminton racquet stringing
- Product Code: WRZ748100
Click Here for the Wilson Baiardo user manual
